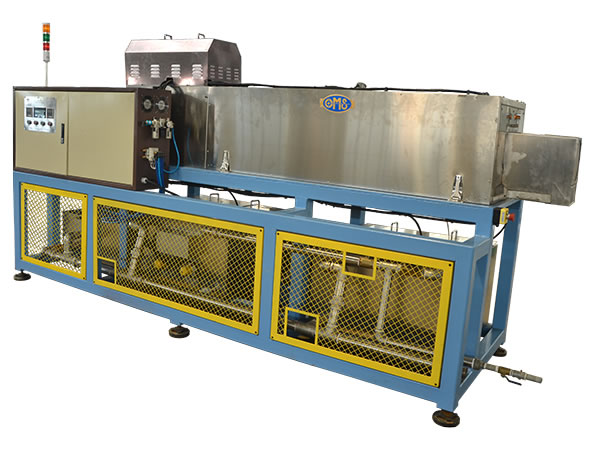

Return Bend Cleaning Unit
-
-
-
This equipment is used to deburr and clean return bend elbows produced by the pipe cutter.
Work process: feed--deburr and clean--rinse--dry--discharge
| Main technical parameter | |||||
| 1 | Elbow dimension | Φ7, Φ7.94 and Φ9.52, applied to all kinds of elbows whose height is below30mm | 5 | Water pressure | 0.2 ~ 0.4Mpa |
| 6 | water consumption | 3.0-5.0M3/h | |||
| 2 | Cleaning agent | cleaning agent with bubble little and water-solubility highly for industry | 7 | Efficiency | 4500 pcs/each hour |
| 8 | Total power | ≤28Kw | |||
| 3 | Rotating speed of clean roller | 25rpm | 9 | compressed air pressure | 0.4-0.6Mpa |
| 4 | Rotating speed of dehydration roller | 4rpm (adjustable) | |||
