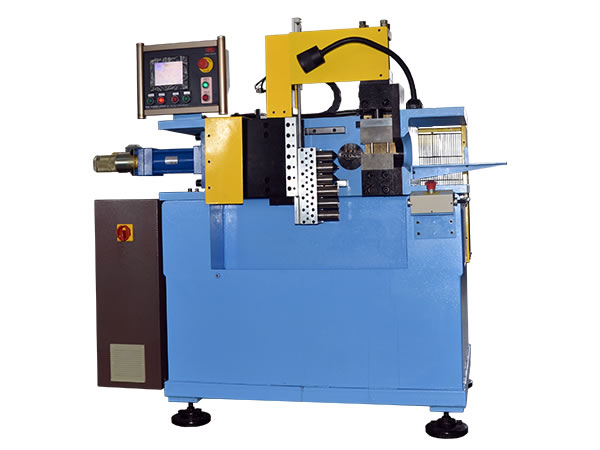

Tube End Forming Machine (Ram Forming Type)

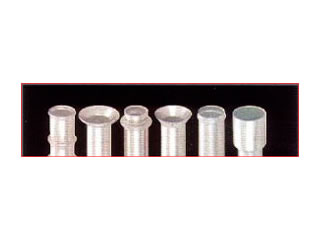

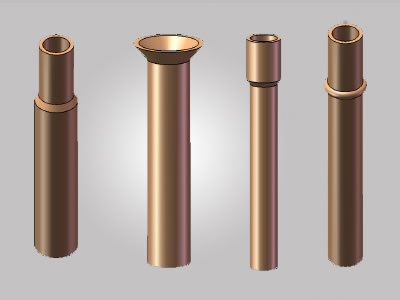

The ram type tube end former is used to process the tube end into different shapes, such as horn shape, U shape and locating ring shape. They are primarily used in tube end processing for air-conditioners, water heaters, airplanes, automobiles, etc.
-
-
-
-
Features:
1. High accuracy, high degree of automation
2. Various shapes
3. Complete in specifications
End forming machine with flinging mode
| Main Technical parameters | |||||
| 1 | Max machining pipe diameter | Copper (aluminum) Ф30mm | 11 | Max clamping power | 2000kg |
| 2 | Max machining W. Thickness | 1.6mm | 12 | Max clamping journey | 30mm |
| 3 | Machining units | 6 | 13 | Max plus force | 2000kg |
| 4 | Machining efficiency | 6p/12sec | 14 | Max machining depth error | ＜ ±0.5 |
| 5 | Electric control mode | PLC | 15 | Max coaxial error | ＜ 0.1 |
| 6 | Operating mode | Auto/ manual/ jog | 16 | Movable die distance | 30mm |
| 7 | Loading mode | Manual | 17 | Power supply | Three phase 380V/50HZ |
| 8 | Driven mode | Servo-motor | 18 | Hydraulic motor power | 3.75KW |
| 9 | Machining mode | Cool forging | 19 | Hydraulic system pressure | 7-12Mpa |
| 10 | Flaring journey | 150mm (Adjustable) | |||
