Tube End Forming Machine (Rotary Forming Type)

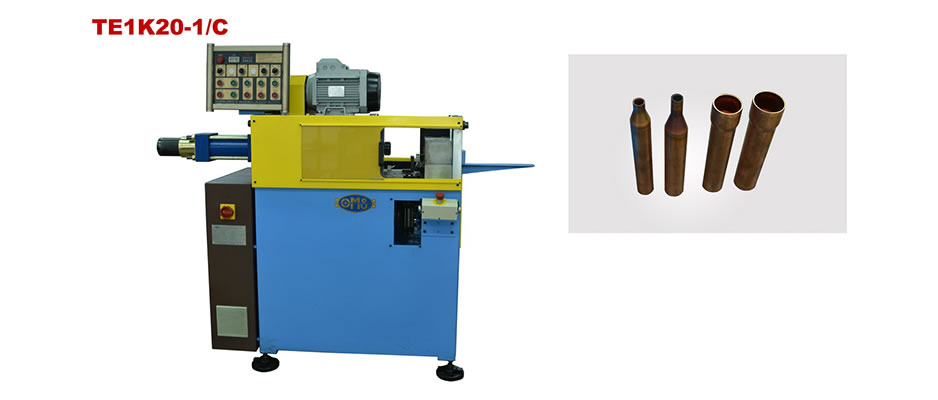

Machine drawing of the rotary type tube end former

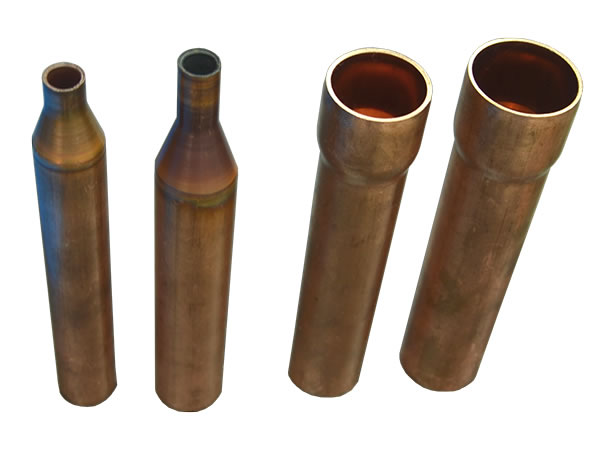

Rotary type tube end formers are used to process the tube end into different shapes using a rotary head. They can form horn shapes, U shapes and locating ring shapes. They are primarily used in tube end processing for air-conditioners, water heaters, airplanes, cars, etc.

  • Rotary type tube end former
  • Product

Features:
1. High accuracy, high degree of automation
2. Various shapes
3. Complete in specifications

Main Technical parameters
1 Max machining pipe diameter Copper Ф40mm 10 Flaring journey 100mm (Adjustable)
2 Max machining W. Thickness 2.5mm 11 Max clamping power 4000kg
3 Machining units 1 12 Max clamping journey 60mm
4 Machining efficiency 1pieces/5 seconds 13 Max plus force 4000kg
5 Electric control mode PLC 14 Max machining depth error < ±0.5
6 Operating mode Auto/ manual/ jog 15 Max coaxial error < 0.1mm
7 Loading mode Manual 16 Power supply 3 phase 380V/50HZ
8 Driven mode Hydraulic pressure 17 Hydraulic motor power 3.75KW
9 Machining mode Rotating, Cooling forge 18 Hydraulic system pressure 8Mpa
