CNC Tube Punching Machine

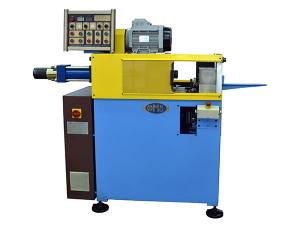

Machine drawing of the CNC tube punching machine The CNC tube puncher is a highly efficient tube processing device that performs highly precise punches.
Features:
1. Servo feeding, hydraulic molding.
2. CNC programming, convenient operation.
3. Fine molding performance, high efficiency.
-
-
-
-
| Main technical parameters | |||||
| 1 | Min machining pipe diameter | Φ16mm(copper) | 10 | Max machiningW.thickness | 1.5mm |
| 2 | Max machining pipe diameter | Φ100mm(copper) | 11 | Machining efficiency | 5-7 sec/each hole |
| 3 | Machining mode | Punching | 12 | Feeding axis travel(servo control) | 1300mm |
| 4 | Min distance of adjacent holes | 16mm | 13 | positioning accuracy of feeding axis | ±0.1 |
| 5 | Clamp mode | Hydraulic power | 14 | Feeding axis speed | 800mm/s |
| 6 | Electric control mode | PLC of Two axis | 15 | Rotating angle(servo control) | ±1800 |
| 7 | Operating mode | Auto/ manual/ jog | 16 | Power supply | 3 phase 380v 50HZ |
| 8 | Loading mode | hand | 17 | Power of hydraulic motor | 2.2KW |
| 9 | Pressure of hydraulic system | 5-Mpa | 18 | Overall size | L(2.3m)ХW(1m)ХH(1.5m) |
