Integrated CNC Tube Processing Machine (Cutting/End Forming/Bending)

Machine drawing of the integrated CNC tube processing machine (cutting/end forming/bending)
Inquiry Form

The integrated CNC tube processing machine (cutting/end forming/bending) is a 3D forming machine for air-conditioner pipes. It can straighten, size, cut, end form and 3D bend the coiled copper pipes, automatically.

It is mostly applied in tube forming for aeromotor, rocket motor, automobiles, household appliances, etc.

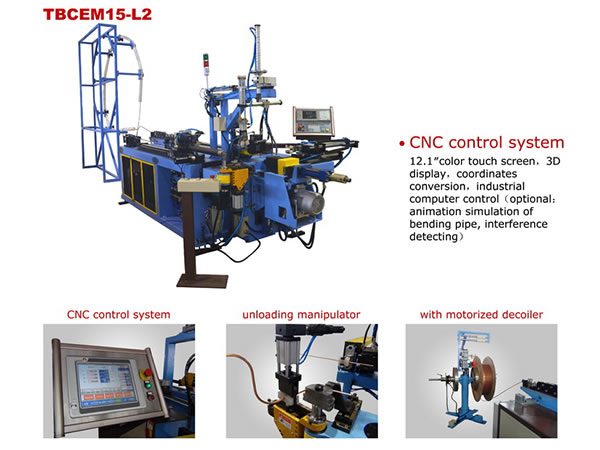

  • Integrated CNC tube processing machine (cutting/end forming/bending)

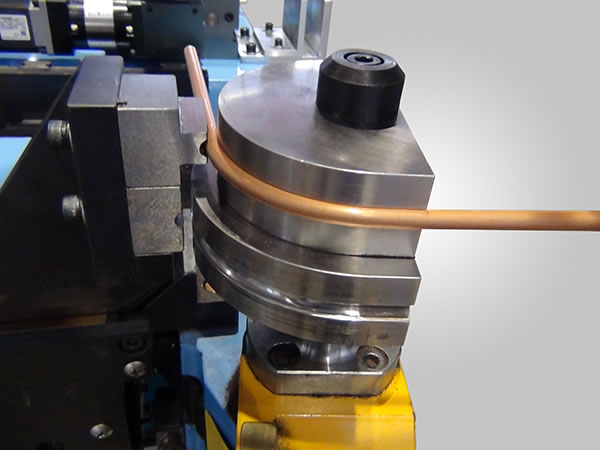

  • Tube bending station

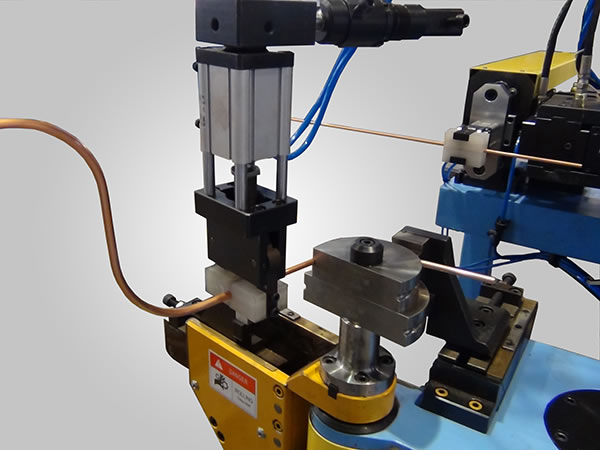

  • Feeding by manipulator

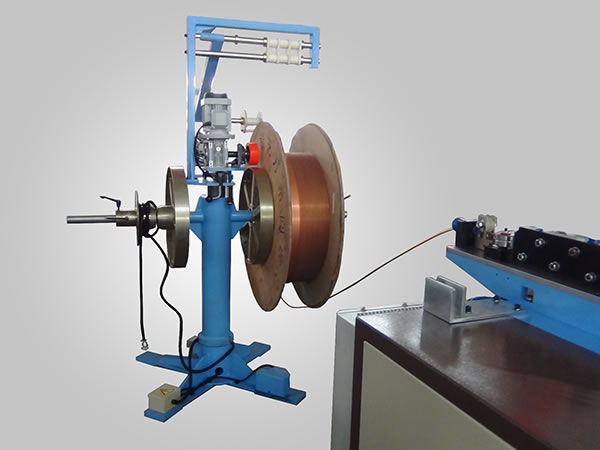

  • Motorized decoiler

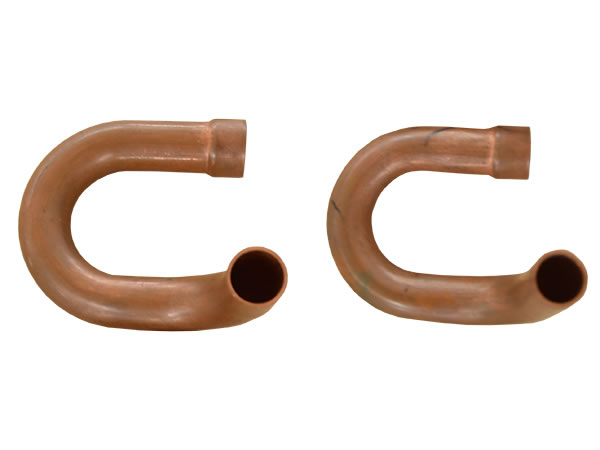

  • Product

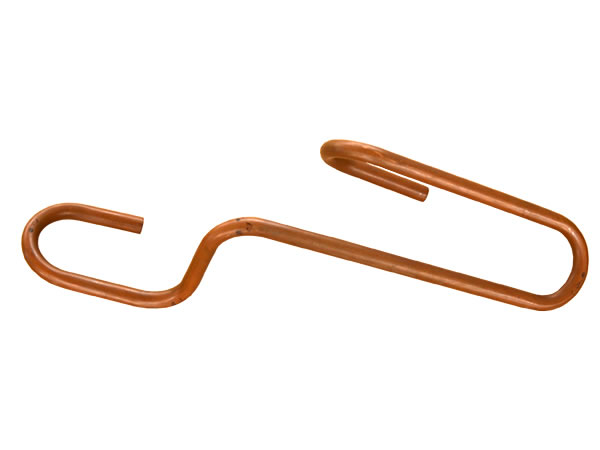

  • Product

Features:
1. High degree of automation, can perform virtual processes
2. Chipless cut-off, CNC sizing, servomotor drive.
3. 3D CNC tube bending
4. CNC shift
5. Multi-station end forming
6. Stable working, low noise, high cutting accuracy.
7. Simple maintenance is, easy to operate.
8. Equipped with intermittent blade oil injection device that can prolong the life of blade.
9. Motorized decoiler.
10. Unloaded by pneumatic manipulator.

Main technical parameters
1 Bending part Tube diameter×W. thickness Ф15×1.6mm 13 Cutting part One feeding journey 700mm
2 Bending radius 60mm/ 10mm 14 Beeline tolerance ≤ 2‰
3 Max coil length 1200mm 15 Repeatable set length error ≤ 0.6mm
4 Beeline feeding axis Journey: 0--1200mm 16 Pipe end inner diameter shrinking rate f < 20%
5 Speed: 0--1000mm/sec 17 Length error in each cutting ≤ 0.5mm
6 Precision: ±0.05mm 18 End-forming part Machining position 2
7 Spatial rotating axis Angle: 0--±360° 19 Max clamping force 1000kg
8 Speed: 0--600°/sec 20 Max plus force 1000kg
9 Precision: ±0.05° 21 Max machining depth error ＜ ±0.5
10 Bending axis Angle: 0--195° 22 Max coaxial error ＜ 0.1
11 Speed: 0--300°/sec 23 Hydraulic motor power 2.2KW
12 Precision: ±0.05° 24 Hydraulic system pressure 5-8Mpa
25 Integrated power 5~8 sec/ bend
